We again consider the linear system of ODE

where M ∈ M^n×n.

In this section we address the observability problem, modeled as follows. We suppose that we can observe

(O)                                             y(t) := Nx(t)               (t ≥ 0),

for a given matrix N ∈ M^m×n. Consequently, y(t) ∈ R^m. The interesting situation is when m << n and we interpret y(.) as low-dimensional “observations” or  “measurements” of the high-dimensional dynamics x(.).

OBSERVABILITY QUESTION: Given the observations y(.), can we in principle reconstruct x(.)? In particular, do observations of y(.) provide enough information for us to deduce the initial value x⁰ for (ODE)?

DEFINITION. The pair (ODE),(O) is called observable if the knowledge of y(.) on any time interval [0, t] allows us to compute x⁰.

More precisely, (ODE),(O) is observable if for all solutions x₁(.), x₂(.), Nx₁(.) ≡Nx₂(.) on a time interval [0, t] implies x₁(0) = x₂(0).

TWO SIMPLE EXAMPLES. (i) If N ≡ 0, then clearly the system is not observable.

(ii) On the other hand, if m = n and N is invertible, then clearly x(t) = N−1y(t)

is observable.

The interesting cases lie between these extremes.

THEOREM 1.1 (OBSERVABILITY AND CONTROLLABILITY). The system

(1.11)

is observable if and only if the system

(1.12)

is controllable, meaning that C = Rⁿ.

INTERPRETATION. This theorem asserts that somehow “observability and controllability are dual concepts” for linear systems.

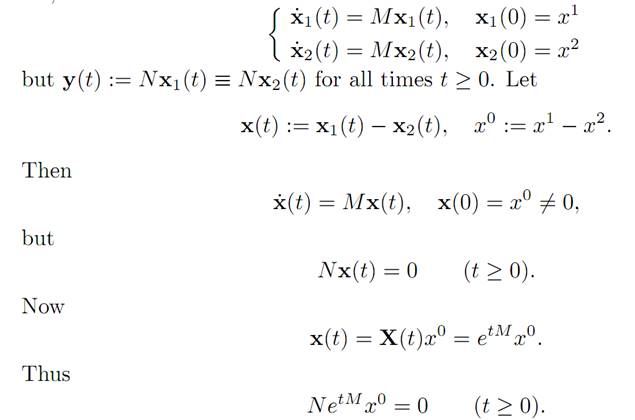

Proof. 1. Suppose (1.11) is not observable. Then there exist points x¹ ≠ x² ∈Rⁿ, such that

Let t = 0, to find Nx⁰ = 0. Then differentiate this expression k times in t and let t = 0, to discover as well that

                                               NM^kx⁰= 0

for k = 0, 1, 2, . . . . Hence (x⁰)^T (M^k)^TN^T = 0, and hence (x⁰)^T (M^T )kN^T = 0.

This implies

                               (x⁰) ^T [N^T ,M^TN^T , . . . , (M^T ) ⁿ⁻¹N^T ] = 0.

Since x⁰ = 0, rank[N^T , . . . , (M^T )ⁿ⁻¹N^T ] < n. Thus problem (1.12) is not controllable. Consequently, (1.12) controllable implies (1.11) is observable.

2. Assume now (1.12) not controllable. Then rank[N^T , . . . , (M^T )ⁿ⁻¹N^T ] < n,  and consequently according to Theorem 2.3 there exists x0 = 0 such that

(x⁰) ^T [N^T , . . . , (M^T ) ⁿ⁻¹N^T ] = 0.

That is, NM^kx⁰ = 0 for all k = 0, 1, 2, . . . , n − 1.

We want to show that y(t) = Nx(t) ≡ 0, where

According to the Cayley–Hamilton Theorem, we can write

for appropriate constants. Consequently NMⁿx⁰ = 0. Likewise,

and so NMⁿ⁺¹x⁰ = 0. Similarly, NM^kx⁰ = 0 for all k.

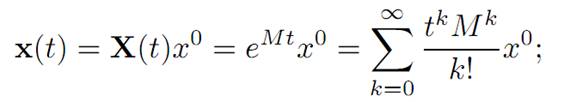

Now

and therefore

References

[B-CD] M. Bardi and I. Capuzzo-Dolcetta, Optimal Control and Viscosity Solutions of Hamilton-Jacobi-Bellman Equations, Birkhauser, 1997.

[B-J] N. Barron and R. Jensen, The Pontryagin maximum principle from dynamic programming and viscosity solutions to first-order partial differential equations, Transactions AMS 298 (1986), 635–641.

[C1] F. Clarke, Optimization and Nonsmooth Analysis, Wiley-Interscience, 1983.

[C2] F. Clarke, Methods of Dynamic and Nonsmooth Optimization, CBMS-NSF Regional Conference Series in Applied Mathematics, SIAM, 1989.

[Cr] B. D. Craven, Control and Optimization, Chapman & Hall, 1995.

[E] L. C. Evans, An Introduction to Stochastic Differential Equations, lecture notes avail-able at http://math.berkeley.edu/˜ evans/SDE.course.pdf.

[F-R] W. Fleming and R. Rishel, Deterministic and Stochastic Optimal Control, Springer, 1975.

[F-S] W. Fleming and M. Soner, Controlled Markov Processes and Viscosity Solutions, Springer, 1993.

[H] L. Hocking, Optimal Control: An Introduction to the Theory with Applications, OxfordUniversity Press, 1991.

[I] R. Isaacs, Differential Games: A mathematical theory with applications to warfare and pursuit, control and optimization, Wiley, 1965 (reprinted by Dover in 1999).

[K] G. Knowles, An Introduction to Applied Optimal Control, Academic Press, 1981.

[Kr] N. V. Krylov, Controlled Diffusion Processes, Springer, 1980.

[L-M] E. B. Lee and L. Markus, Foundations of Optimal Control Theory, Wiley, 1967.

[L] J. Lewin, Differential Games: Theory and methods for solving game problems with singular surfaces, Springer, 1994.

[M-S] J. Macki and A. Strauss, Introduction to Optimal Control Theory, Springer, 1982.

[O] B. K. Oksendal, Stochastic Differential Equations: An Introduction with Applications, 4th ed., Springer, 1995.

[O-W] G. Oster and E. O. Wilson, Caste and Ecology in Social Insects, Princeton UniversityPress.

[P-B-G-M] L. S. Pontryagin, V. G. Boltyanski, R. S. Gamkrelidze and E. F. Mishchenko, The Mathematical Theory of Optimal Processes, Interscience, 1962.

[T] William J. Terrell, Some fundamental control theory I: Controllability, observability,  and duality, American Math Monthly 106 (1999), 705–719.
