Control of Gene Expression

All cells contain a set of genes, which can be thought of as a set of instruc­tions for making each of a very large number of proteins. The creation of a protein from its gene is called gene expression. However, for a given cell not all of these instructions are actually used, and among those that are, some are used more than others or only under certain circumstances. Con­trolling gene expression is critical to a cell because it allows it to avoid wast­ing energy and raw materials in the synthesis of proteins it does not need. Thus, it allows a cell to be a more streamlined and versatile entity that can respond to changing conditions by adjusting its physiology.

To understand the control of gene expression, two key concepts should be understood. First, gene expression requires transcription, the process of making a messenger ribonucleic acid (mRNA) copy of the deoxyribonucleic acid (DNA) gene. Transcription can only occur if RNA polymerase first at­taches, or binds, to the DNA. Controlling this binding process is the ma­jor way that gene expression is controlled, and proteins are the major controllers of binding.

The second important concept is that a protein molecule that helps reg­ulate binding can itself be regulated. This usually occurs when some other molecule binds to the protein, causing the protein to undergo a structural change, in other words, to change shape. In some cases this shape change will help RNA polymerase to bind to DNA, and in other cases it will pre­vent it from doing so.

Control in Prokaryotes

Negative Control. The concept that gene expression could be controlled originated with studies done in the 1950s by French scientists Francois Ja­cob and Jacques Monod. They were studying the metabolism of a sugar, called lactose, by the E. coli bacterium. β-Lactose metabolism requires three proteins. Galactosidase and lactose permease are both involved directly in lactose metabolism; β-galactosidase hydrolyzes lactose into galactose and glucose, and lactose permease transports lactose across the bacterial cell membrane. The physiologic role of the third protein, thiogalactoside acetylase, is unclear. Jacob and Monod found that the amount of the three pro­teins all increased when E. coli were cultured in lactose-containing medium (a nutrient source). This led to the hypothesis that the three genes were reg­ulated together as a single unit.

This type of multigene unit was dubbed an “operon” and consists of the structural genes, which encode proteins, plus regulatory sequences lying up­stream on the DNA. The structural genes in an operon are transcribed as a single mRNA, and the mRNA is thus polygenic (or polycistronic). An el­egant series of experiments showed that transcription was begun when a lac­tose derivative, Allolactose, caused a repressor to be removed from the transcription initiation site. Thus, lactose regulates the synthesis of the en­zymes necessary for its own metabolism by releasing the transcriptional re­pression imposed upon them. This type of regulation is called negative regulation, since it employs a repression to prevent transcription. The use of activator proteins in the positive control of gene expression is also com­mon in prokaryotes. In this system, the activator protein promotes tran­scription.

Positive Control. Positive control of gene expression is illustrated by the transcriptional activator, catabolite gene activator protein (CAP). CAP ac­tivates transcription of the lac operon, in addition to many other inducible operons. Because glucose is a preferred food source, the lac operon is not activated in E. coli cells cultured in medium containing both glucose and lac­tose until the glucose is used up. However, since lactose is present, one might expect the lac operon to be derepressed and hence active. But exper­iments have shown that glucose itself represses the activity of the lac operon, such that only when lactose is the only source of energy is it activated. This glucose repression is observed for a number of other operons that encode enzymes for the utilization of alternative energy sources. Glucose repres­sion occurs via a positive mechanism. As glucose is consumed, its level in the cell drops. Low glucose levels stimulate the production of a small molecule called cyclic-AMP (cAMP), which then binds CAP. CAP under­goes a structural change that allows it to bind DNA and activate transcrip­tion. Thus, regulation of the lac operon is achieved by collaboration between the negative control of the lac repressor and the positive control of CAP.

The lac repressor and CAP are examples of regulators of initiation of transcription. Although most regulators act at this level, some act at the level of elongation of the mRNA, after transcription has started. The tryptophan operon (trp operon) consists of five structural genes necessary for the biosyn­thesis of the amino acid tryptophan. It is regulated at the level of initiation via a negative regulatory scheme much like that for the lac operon; how­ever, an additional mechanism, called transcriptional attenuation, is also at work. Part of the mRNA generated from the trp operon spontaneously folds into a stem-loop structure that exposes a termination sequence, causing tran­scription to terminate prematurely. However, when tryptophan is lacking, the ribosome works more slowly (since tryptophan is needed to make pro­tein). This allows time for the formation of a different structure, the stem- loop, which hides the termination sequence, with the result being that transcription continues and a full-length transcript is produced. Thus, the end product of the operon, tryptophan, actively participates in the regula­tion of its own synthesis. This is a common theme in prokaryotic tran­scriptional regulation. Transcriptional attenuation can occur in prokaryotes because translation of an mRNA begins before its synthesis is complete. In eukaryotes it does not occur because transcription and translation are com­pletely separate processes that do not occur simultaneously.

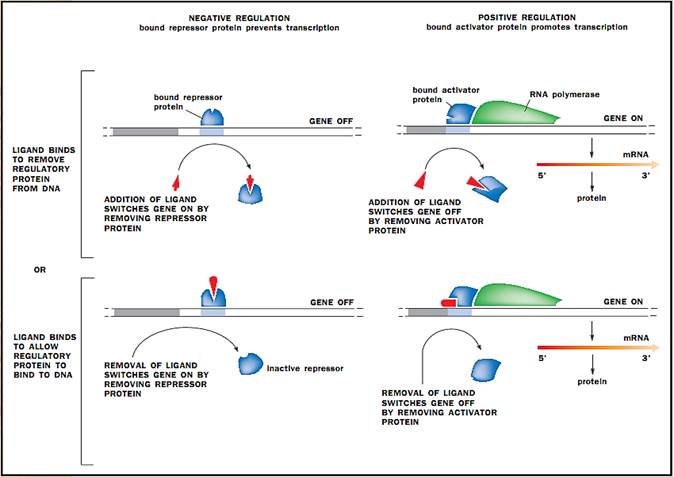

The mechanisms by which gene regulatory proteins control gene transcription in prokaryotes. A ligand is a small molecule that binds to a protein.

Eukaryotic Transcription

Regulation of transcription is by necessity far more complex in eukaryotic cells (cells with a nucleus) than in prokaryotic cells. Not only are eukary­otic cells larger and more highly compartmentalized, but multicellular eu­karyotes pass through a number of developmental stages, each requiring different proteins, on the road to their final differentiated state. Also, mul­ticellular organisms contain many different cell types, each of which ex­presses distinct sets of proteins.

Certain basic features of transcriptional regulation are shared between prokaryotes and eukaryotes; in both cases it involves interplay between activators and repressors that bind cis-acting sequences on DNA. However, one major difference is that, unlike prokaryotic DNA, eukaryotic chromo­somes are wrapped around proteins called histones, to form a condensed form of DNA called chromatin. This tends to repress gene transcription, and several transcriptional activators have been found to function by re­lieving chromatin-induced repression. Another feature that distinguishes eu­karyotic from prokaryotic transcription is that RNA polymerase does not bind directly to DNA but instead binds via a set of proteins called the ba­sic transcription factor. Thus, in many cases the role of activators is to re­cruit these transcription factors to the promoter site rather than to directly recruit the polymerase itself. Finally, whereas prokaryotic genes are often controlled by only one or two regulatory proteins, eukaryotic genes are typ­ically controlled by a multiplicity of factors. This added complexity allows for the fine-tuning of gene activity in response to multiple stimuli.

Structure of Transcriptional Activators

Many transcriptional activators are essentially modular in structure in that the DNA-binding domain and the transactivation (or activation) domain can almost be thought of as two distinct proteins that are physically linked. The DNA-binding domain is the part of the molecule that contacts DNA at the promoter site. The transactivation domain is the part that recruits other fac­tors to the promoter such that the rate of transcription of the gene increases. Although transcription factor DNA-binding domains vary in amino acid se­quence, many can be placed into structural categories based on their three-dimensional structures. Among these are the zinc finger, helix-loop-helix, and helix-turn-helix classes. Although the three-dimensional structures within a class are similar, each individual binding domain can recognize a different DNA sequence due to specific amino acid differences and differ­ent amino acid-DNA contacts. Many transcriptional activation domains can also be placed into categories, the most common of which is the acidic ac­tivation domain category. Others include the glutamine-rich and proline- rich classes.

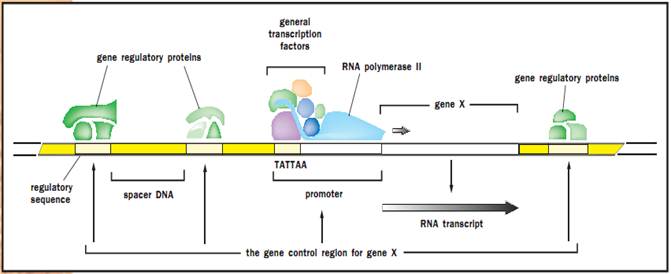

The gene control region of a eukaryotic gene.

Regulation of Transcriptional Activators

Regulation of transcription sometimes occurs via the simple presence or ab­sence of transcription factors. An example of this is in the regulation of the immunoglobulin (an immune protein, also called antibody) heavy chain gene, which is expressed in B lymphocytes (white blood cells that make an­tibodies) but not other cell types. This gene’s enhancer (a region distant from the promoter) contains at least nine binding sites for regulatory pro­teins. The enhancer is acted on by activators present in B lymphocytes, while in nonlymphocyte cells repressors are present that inhibit transcrip­tion. This limits expression of the gene to lymphocytes.

Often, however, regulation does not occur at the level of presence or absence of a regulatory protein but rather by modulation of its activity. Thus, many transcription factors are always present in the cell, awaiting the spe­cific signals that will convert them from an inactive to an active form. How is this achieved? The three most common mechanisms are regulation of nu­clear localization, regulation of DNA binding, and regulation of transacti­vation.

Regulation of Nuclear Localization. In many cases a protein is kept in the cytoplasm, well away from its target genes, until a stimulus signals it to en­ter the nucleus and activate transcription. This mode of regulation works be­cause transport into the nucleus is regulated, such that only proteins possessing a special tag are allowed to enter. The transcription factor NF-kB, which reg­ulates a number of genes in immune cells that help fight infections, is regu­lated in this way. NF-kB is present in the cytoplasm of unstimulated immune cells as a complex with an inhibitory protein called KB. Upon receiving a stimulus, such as a viral infection, KB becomes phosphorylated and is subsequently degraded, leaving NF-kB free to enter the nucleus and activate its target genes to help fight infection. Interestingly, one of these target genes is the KB gene, and thus inhibition of NF-kB is reestablished shortly thereafter. This kind of negative feedback mechanism, bringing the cell back to its un­stimulated state, is common among inducible genes. In addition, NF-kB ac­tivation illustrates another common feature of transcription factor regulation in eukaryotes: phosphorylation is often used as a switch that interconverts a transcription factor back and forth between inactive and active forms.

Regulation of DNA Binding. A second common mechanism by which the activity of a transcription factor is controlled is through alteration of its DNA-binding ability. The steroid hormone receptor family is a good ex­ample of this. This family of transcription factors has many members, all related in structure, yet binding to distinct steroid hormones on the one hand, and activating distinct sets of genes on the other. Some of these hor­mone receptors reside in the cytoplasm and others in the nucleus, but all are unable to bind their target DNA sequence until they first bind to their corresponding steroid hormone. This causes them to undergo a conforma­tional change that increases their affinity for DNA, allowing them to bind. It is through their action on hormone receptors and DNA that steroid hor­mones exert their powerful effects on the body’s cells.

Another way to increase the DNA-binding ability of a transcription fac­tor is to induce it to multimerize. Many factors are inactive by themselves, but when induced to bind other factors, they can bind their target sequences and activate transcription. The other factors can either be identical mole­cules of the same factor, thus forming homomultimers, or different pro­teins, forming hetero-multimers. An example of this occurs with heat shock factor (HSF) in mammalian cells, which upon stimulation forms ho­motrimers. The DNA-binding affinity of a single molecule of HSF for its binding site is too low to be physiologically significant; however, a complex of three molecules binds the target site very tightly, making HSF one of the most inducible transcription factors known.

Regulation of Transactivation. Finally, some transcriptional activators are already bound to their target sites in gene promoters but remain tran­scriptionally inactive until they are stimulated. In yeast, HSF is already trimerized and bound to some of its target genes in unstimulated cells. Heat shock (a rise in temperature) results in phosphorylation of HSF at multiple sites, which induces a structural change in the protein that unleashes the transactivation domain.

The aforementioned examples illustrate a number of ways in which a transcriptional activator may be regulated. However, it should be kept in mind that many are regulated in more than one way. For example, both nu­clear localization and DNA-binding ability of an activator may be controlled. Thus, even if a few molecules should happen into the nucleus by mistake, they would not be able to bind and activate their target genes. This kind of tight control is important because sometimes even small levels of a protein can set off a cascade of reactions that can dramatically change the physiol­ogy of the cell. It is critical to avoid these types of false alarms in order for the cell not to waste valuable energy and resources, and so that it remains poised to respond to a genuine stimulus.

Transcriptional Repression

Transcriptional repressors, like activators, bind cis-acting sequences in the genes they regulate and are modular in structure, possessing distinct DNA- binding and repressor domains. However, as their name implies, their role is in the repression of gene activity rather than their activation. Some re­pressors function by simply binding upstream regions of genes and block­ing the binding of either activator proteins or the polymerase itself, much like the repressor in the lac operon. Some extremely versatile proteins can function either as repressors or activators, depending on the proteins with which they interact. An example is the Mcm1 protein in yeast. Yeast can be one of two mating types, called a and (“alpha”), each of which expresses mating type-specific sets of genes. Mcm1 dimerizes with one protein to re­press the a-specific genes in a cells, and with another to activate the a specific genes.

The Role of Chromatin

Although transcriptional repressors often participate in gene regulation, it must be kept in mind that the very nature of DNA in eukaryotic cells tends to keep genes in the repressed state. Eukaryotic DNA is wrapped around protein complexes called histone octamers, which has the effect of pack­aging the DNA into a compact form such that it fits inside the nucleus. However, this also limits access of regulatory factors to their target sites. As the mechanisms of transcriptional activators are being uncovered, more and more are being found that act by relieving chromatin-induced repres­sion. An example is the Swi/Snf protein complex, first identified in yeast. Mutations in components of the complex resulted in decreased activity of certain target genes. It was later found that mutations in the histone genes restored normal activity to those target genes; in other words, the muta­tions in the histone genes somehow compensated for the mutations in Swi/Snf. This was an indication that histones and Swi/Snf interact in some way and suggested that Swi/Snf might function by disrupting histone bind­ing to DNA. Biochemical experiments carried out later on showed that this was indeed the case. Although Swi/Snf does not completely dissociate hi­stones from DNA, it loosens them, which is sufficient to allow many acti­vators to bind. Swi/Snf is only involved in activating a subset of genes, and the question of why it functions at some promoters and not others is a topic of intense research.

A second mechanism by which chromatin-induced repression is relieved is by histone acetylation. Histones are positively charged proteins and hence interact tightly with DNA, which is negatively charged. Acetylation of his­tones reduces their net positive charge, which loosens their interaction with DNA and increases transcription factor binding. Several transcription fac­tors in a variety of organisms have now been found to be acetyltransferases; in effect, they can acetylate histones.

In addition, some transcriptional repressors in yeast and mammals have been found to be histone deacetylases. In fact, the protein MeCP2, which binds to methylated DNA, has been found to function in a complex with a histone deacetylase. Thus, methylation would lead to binding of this com­plex, causing deacetylation of histones and a more condensed chromatin structure. Methylated DNA has long been known to be associated with transcriptionally inactive genes, and inroads into the study of histone acetyla­tion have finally provided an explanation for this.

References

Stryer, Lubert. “Control of Gene Expression in Prokaryotes.” In Biochemistry, 4th ed. New York: W. H. Freeman and Company, 1995.

“Eukaryotic Chromosomes and Gene Expression.” In Biochemistry, 4th ed. New York: W. H. Freeman and Company, 1995.
