Styrene

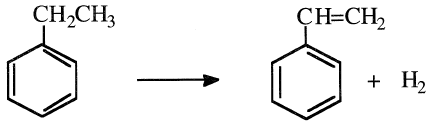

Styrene (vinylbenzene) is a liquid (b.p. 145.2°C) that polymerizes easily when initiated by a free radical or when exposed to light. The 1998 U.S. production of styrene was approximately 11 billion pounds. Dehydrogenation of ethylbenzene to styrene occurs over a wide variety of metal oxide catalysts. Oxides of Fe, Cr, Si, Co, Zn, or their mixtures can be used for the dehydrogenation reaction. Typical reaction conditions for the vapor-phase process are 600–700°C, at or below atmospheric pressure. Approximately 90% styrene yield is obtained at 30–40% conversion:

In the Monsanto/Lummus Crest process (Figure 1.1), fresh ethylbenzene with recycled unconverted ethylbenzene are mixed with superheated steam. The steam acts as a heating medium and as a diluent. The endothermic reaction is carried out in multiple radial bed reactors filled with proprietary catalysts. Radial beds minimize pressure drops across the reactor. A simulation and optimization of styrene plant based on the Lummus

 Monsanto process has been done by Sundaram et al.  Yields could be predicted, and with the help of an optimizer, the best operating conditions can be found. Figure 1.2 shows the effect of steam-to-EB ratio, temperature, and pressure on the equilibrium conversion of ethylbenzene.

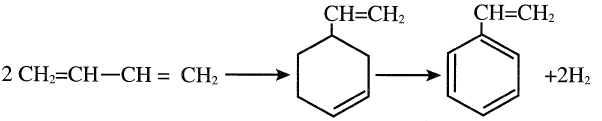

Alternative routes for producing styrene have been sought. One approach is to dimerize butadiene to 4-vinyl-1-cyclohexene, followed by catalytic dehydrogenation to styrene

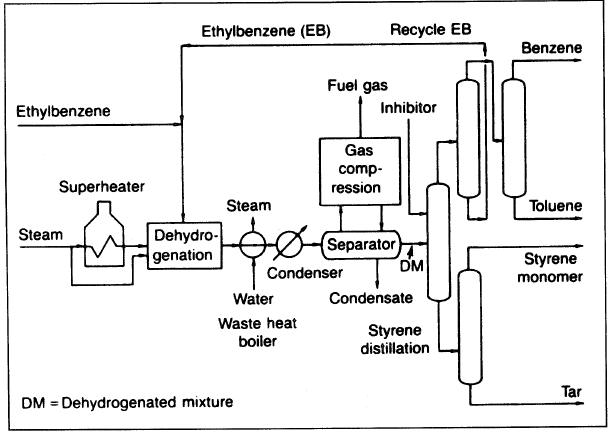

Figure 1.1. Schematic diagram of the Monsanto/Lummus Crest styrene plant.

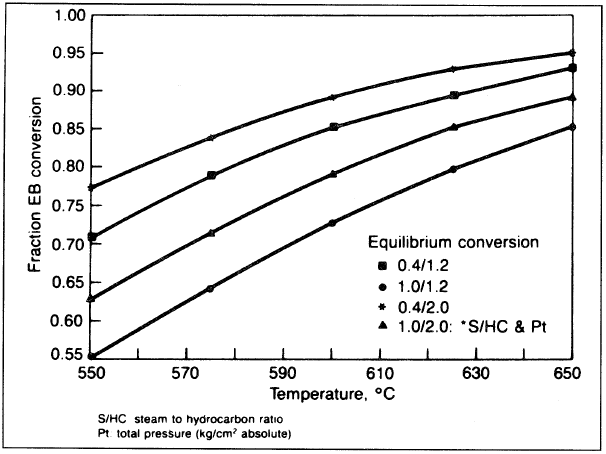

Figure 1.2. Effect of steam/EB, temperature, and pressure on the conversion of ethylbenzene.

The process which was developed by DOW involves cyclodimerization of butadiene over a proprietary copper-loaded zeolite catalyst at moderate temperature and pressure (100°C and 250 psig). To increase the yield, the cyclodimerization step takes place in a liquid phase process over the catalyst. Selectivity for vinylcyclohexene (VCH) was over 99%. In the second step VCH is oxidized with oxygen over a proprietary oxide catalyst in presence of steam. Conversion over 90% and selectivity to styrene of 92% could be achieved.

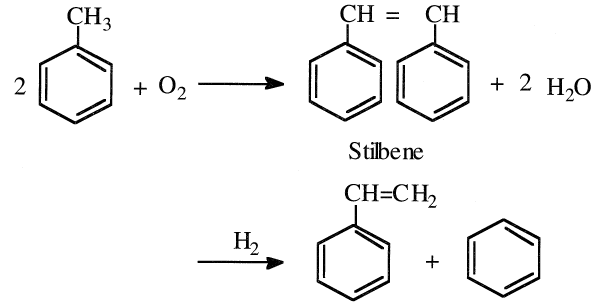

Another approach is the oxidative coupling of toluene to stilbene followed by disproportionation to styrene and benzene:

High temperatures are needed for this reaction, and the yields are low.
