CURRENTS THROUGH PARALLEL RESISTANCES

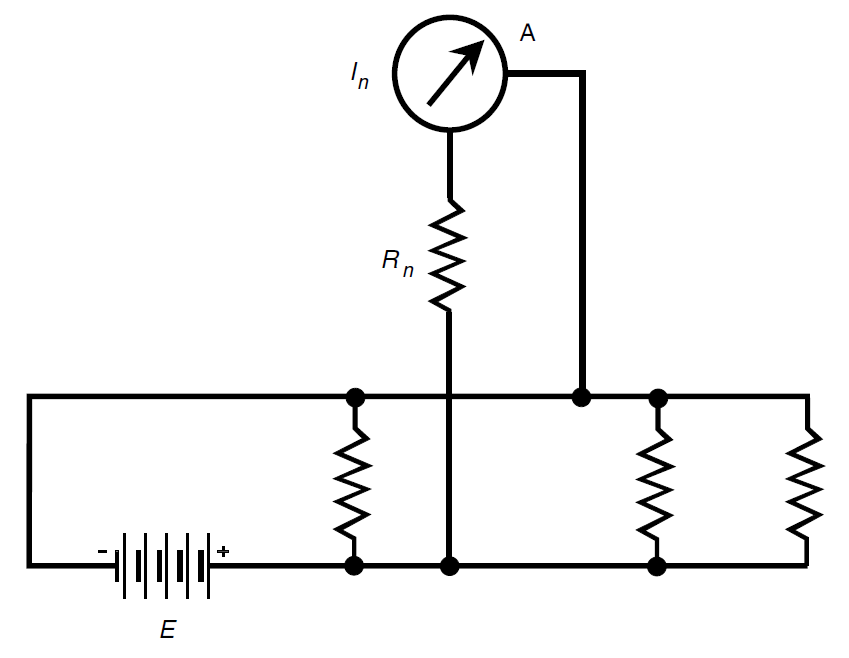

Refer to the schematic diagram of Fig. 1. The total parallel resistance in the circuit is R. The battery voltage is E. The current in branch n, containing resistance Rn, is measured by ammeter A and is called In.
The sum of all the In values in the circuit is equal to the total current I drawn from the source. That is, the current is divided up in the parallel circuit, similarly to the way that voltage is divided up in a series circuit.
Fig. 1. Analysis of current in a parallel dc circuit. See text for discussion.
