Silicon nitride

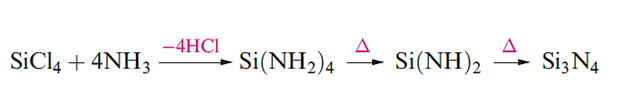

The wide applications of silicon nitride, Si₃N₄, as a ceramic and refractory material and in the form of whiskers  justify its inclusion here. It is a white, chemically inert amorphous powder, which can be formed by or by combining Si and N₂ above 1650 K.

  The two main polymorphs, α- and β-Si₃N₄, possess similar infinite chain lattices in which Si and N are in tetrahedral and approximately trigonal planar environments, respectively. Recently, a denser, harder polymorph, γ-Si₃N₄, has been obtained by high-pressure and -temperature (15 GPa, >2000 K) fabrication. This polymorph has the spinel structure (see Box 12.6): the N atoms form a cubic closepacked structure in which two-thirds of the Si atoms occupy octahedral holes and one-third occupy tetrahedral holes. The oxide spinels  contained metal ions in the ‏2 and ‏3 oxidation states, i.e. (AII)(BIII)₂O₄. In γ-Si₃N₄, all the Si atoms are in a single (‏4) oxidation state. Another new refractory material is Si₂N₂O, made from Si and SiO₂ under N₂/Ar atmosphere at 1700 K; it possesses puckered hexagonal nets of alternating Si and N atoms, the sheets being linked by Si^_O^_Si bonds.

مواضيع ذات صلة

كيمياء القصدير

تطبيقات الطبقات الثنائية الهيدروكسيد

تطبيقات عملية التبادل الأيوني

مواد التبادل الأيوني Ion exchanger

ظاهرة التبادل الايوني Ion Exchange

تاريخ التبادل الايوني Ion Exchange History

كيمياء البلاتين ومعقداته

كيمياء البلاديوم ومعقداته

طرائق تقدير النحاس

كيمياء النحاس ومعقداته

طرائق تقدير النيكل

كيمياء النيكل ومعقداته
